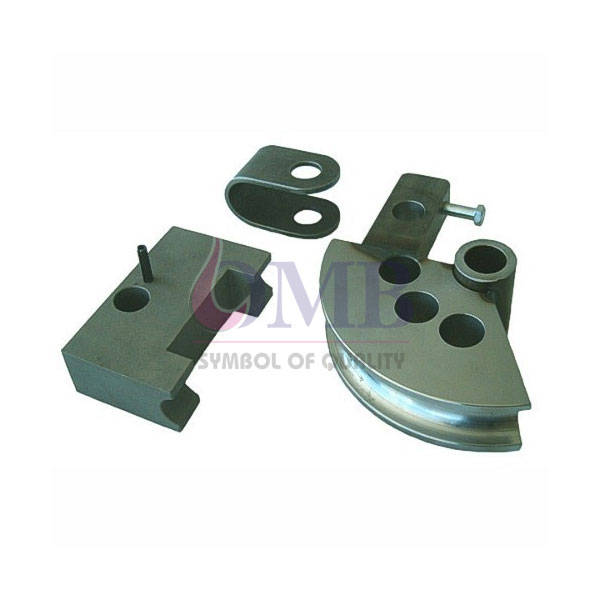

Tube Forming Dies

Specifications:

• Model: PB 20
• Max. Tube Capacity (D x T): 20mm x 1.5mm (Ferrous tubes UTS 45 Kg/mm2)
• Min. Tube Capacity (Diameter): 6mm
• Max. Bend Radius(CLR): 100mm
• Min. Bend Radius(CLR): 20mm
• Min. Bend Radius (in terms of D): 1.5D
• Standard Length over mandrel: 550 Metres
• Bend Angle Range: 5 to 180 degrees
• Bending Direction: Clockwise
• Bending Speed: 60 degrees/second
• Indicative Production Rate: 200 (90 degrees bends/hour )
• Bend Angle Accuracy: ± 0.25 degrees
• Motor: 2.0 HP
• Oil Tank capacity: 35 Litres (built in)
